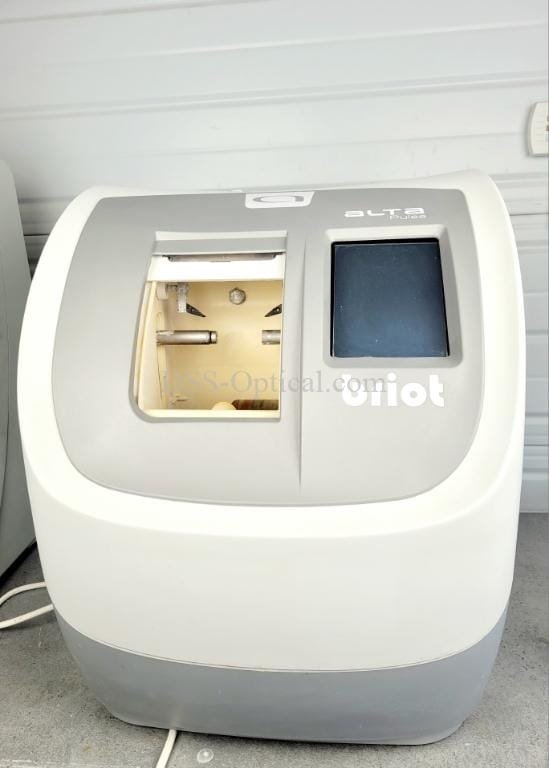

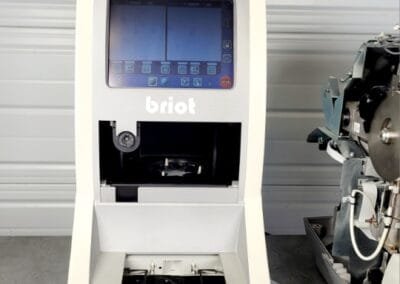

BRIOT Alta NX Pulse / XLd VIN74
This machine BRIOT Alta Pulse/XLd VIN74 currently in stock in our premises in France, has the following characteristics.
| Ref | VIN74 |
| Brand | BRIOT |

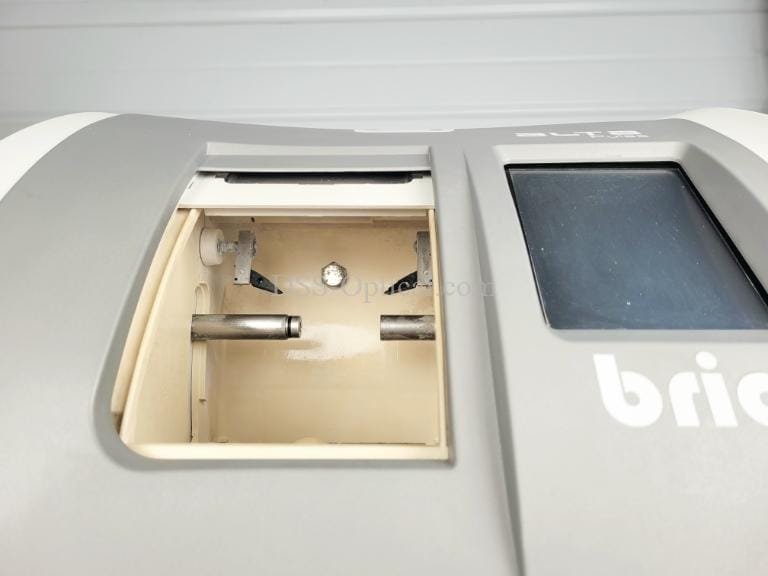

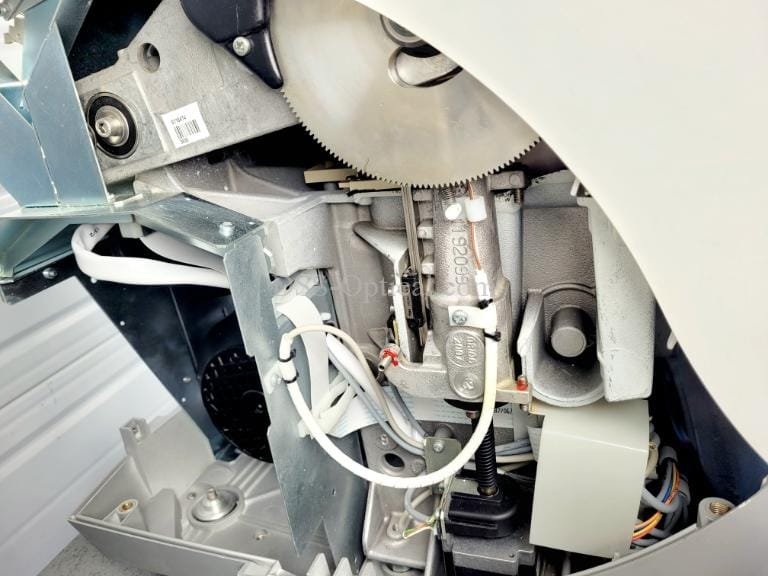

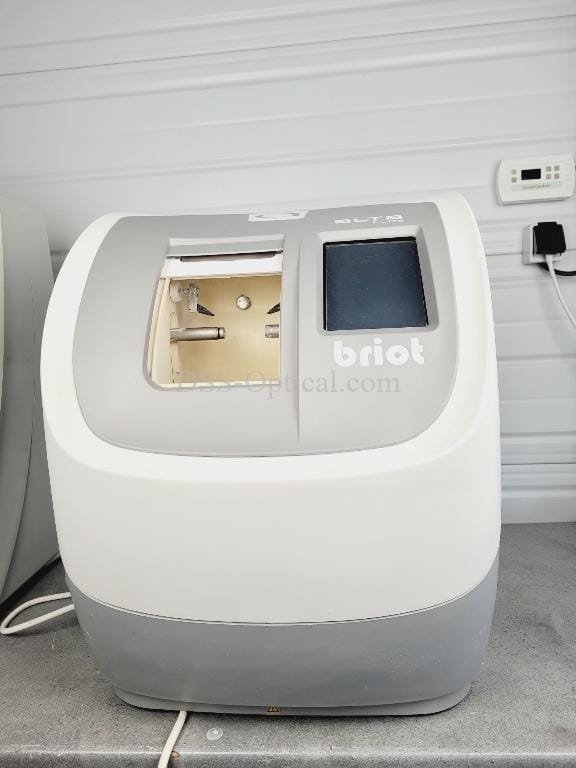

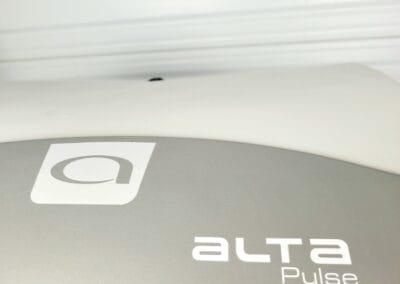

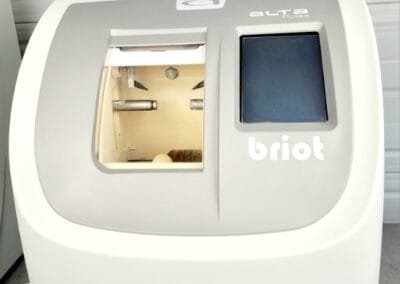

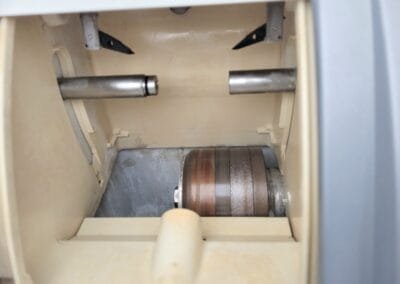

| Edger’s Model | Alta Pulse |
| Edger’s year | 2013 |

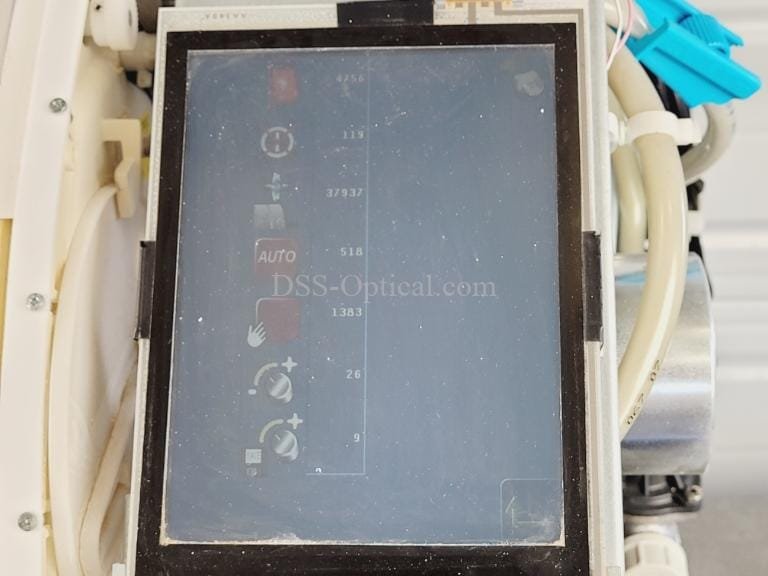

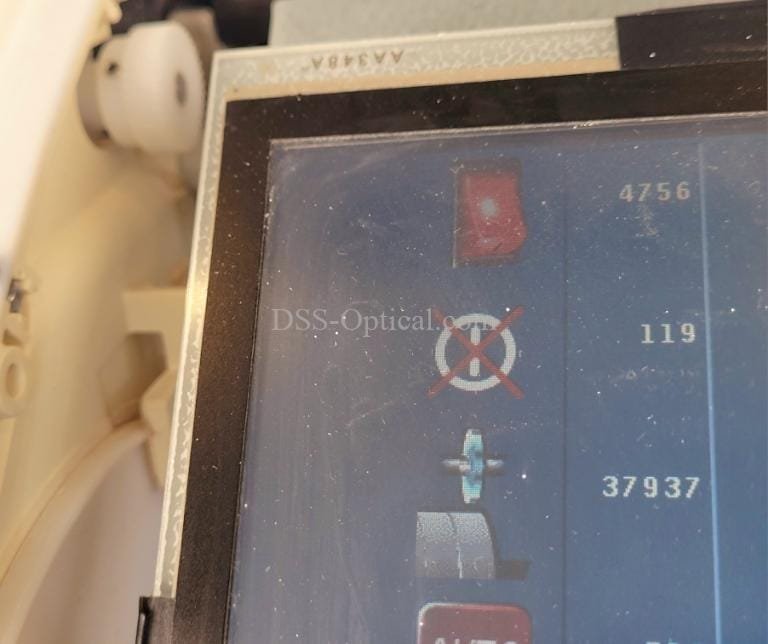

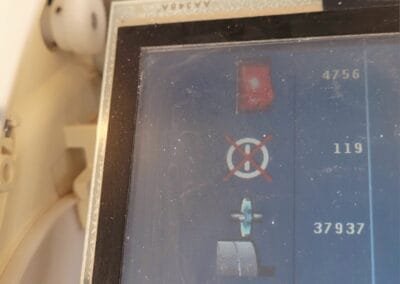

| Counter process | 37937 |
| Description of edger’s faults | Defaults de la meuleuse |

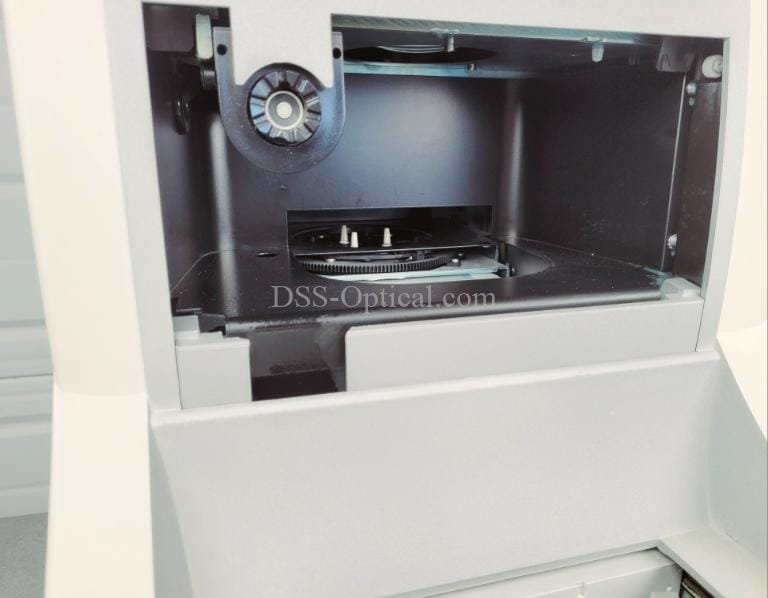

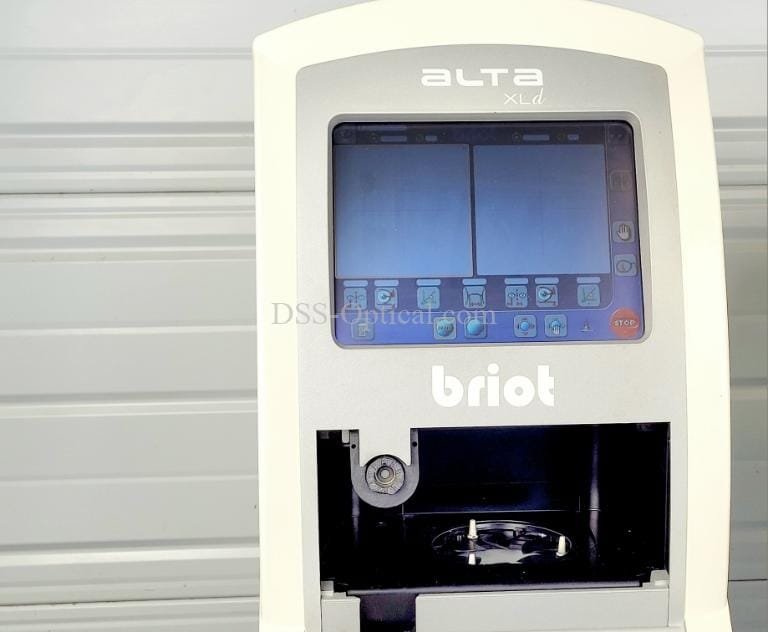

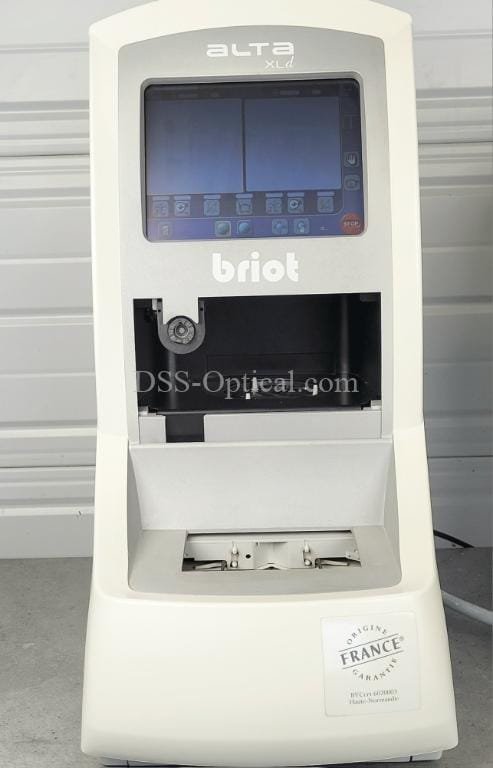

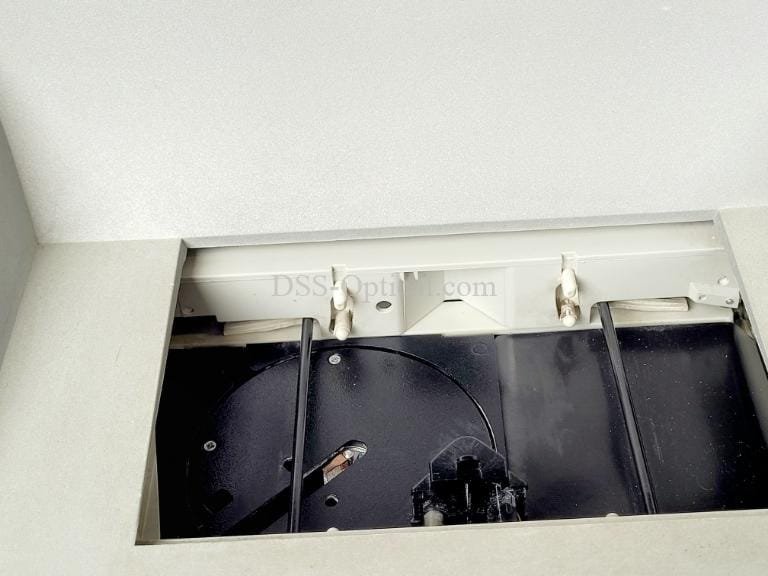

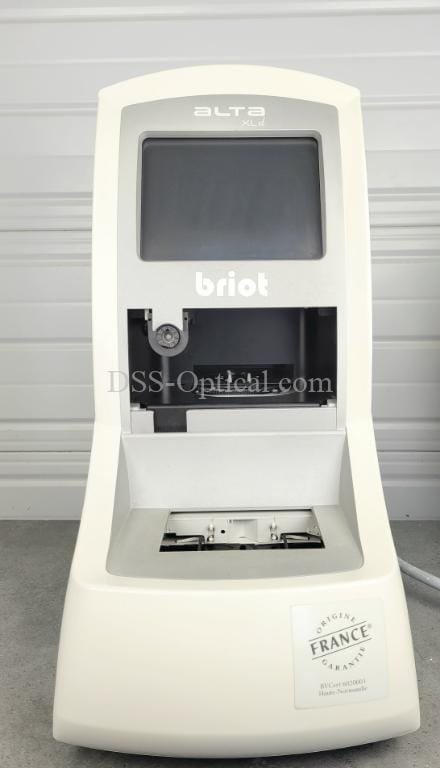

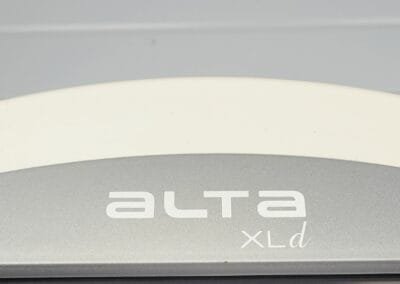

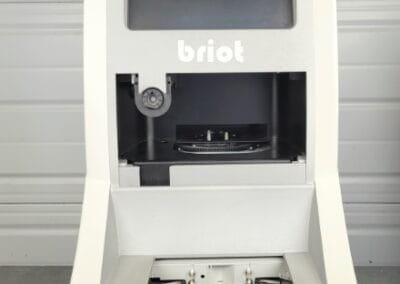

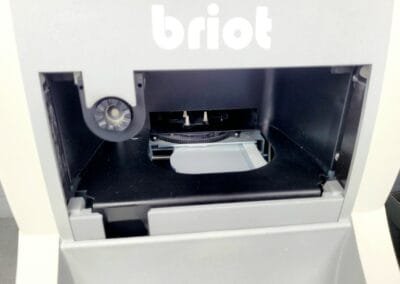

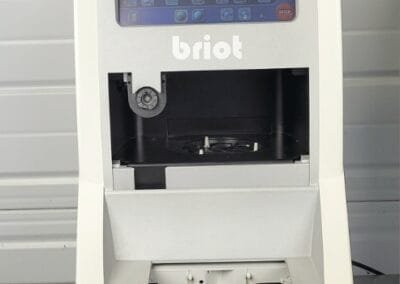

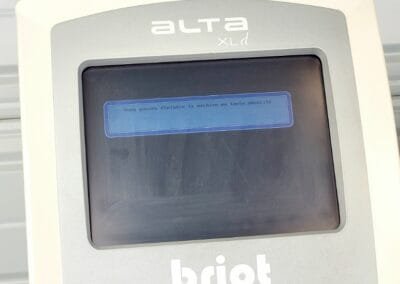

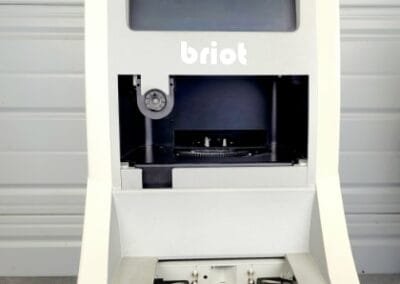

| Tracer’s model | Alta XLd |
| Tracer’s year | 2013 |
| Description of Tracer’s fault |
Edger Tests:
| Test 1 | Lens feeling | ✔️ |
| Test 2 | Lifting jack movement | ✔️ |
| Test 3 | Carriage mouvement | ✔️ |
| Test 4 | Lens rotation | ✔️ |
| Test 5 | SBGD Exit/Return | ✔️ |
| Test 6 | Visor Opening/closing | ✔️ |

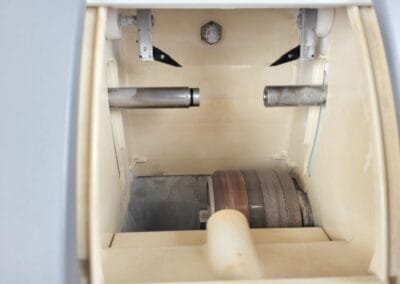

| Test 7 | Wheels rotation | ✔️ |
| Test 8 | Clamping shafts Opening/closing | ✔️ |

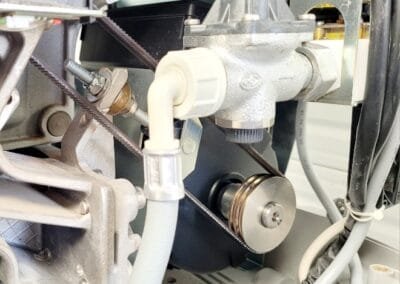

| Test 9 | Pump | ✔️ |
| Test 10 | Buzzer | ✔️ |

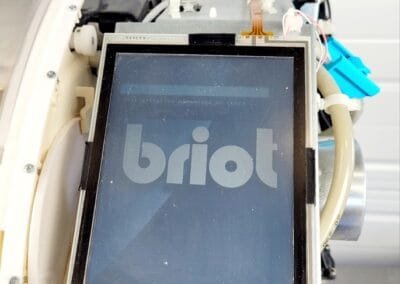

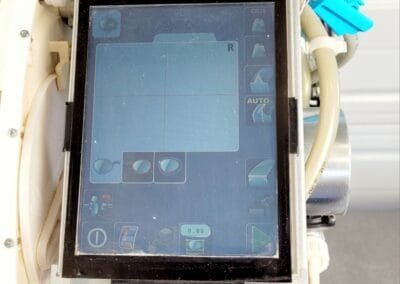

| Test 11 | Touch Screen | ✔️ |
| Test 12 | Temperature | ✔️ |
| Test 13 | Micro switches and photocells | ✔️ |
| Test 14 | Encoders | ✔️ |
| Test 15 | Communication | ✔️ |
| Test 16 | Voltmeter | ✔️ |
Tracer/Blocker Tests:
| Test 1 | Font/rear motion test (Y axis) | ✔️ |
| Test 2 | Left/right motion test (X axis) | ✔️ |
| Test 3 | Lens rotation motion test (RHO axis) | ✔️ |
| Test 4 | Lens grip test | ✔️ |
| Test 5 | Scanform TM Rho axis test | ✔️ |
| Test 6 | Scanform Z axis test | ✔️ |
| Test 7 | Scanform turret rotation test | ✔️ |
| Test 8 | Scanform carriage translation test | ✔️ |
| Test 9 | Rods Test | ✔️ |
| Test 10 | Jaws test | ✔️ |
Edger Accesories:
| Block support 19/25mm | |
| Glass press tip ball joint | |
| Flexible glass press tip | |
| Power cable | |
| Barcode shower |
Tracer & Blocker Accesories:
| Frosted glass | |
| Glant Briot large model | |
| Glant Briot small model | |
| Adjustement glasses | |
| Glass template holder | |
| Fuses 2A | |
| Glass axing adjustement tool | |
| Gain scanform adjustement template | |
| Glass offset calculation template | |
| Axis adjustement template | |
| Jig reader support | |
| Present glass holder |
For more technical information you can consult the technical specifications.
