Optical Coherence Tomography, or OCT, stands as a cornerstone technology in modern medical diagnostics, particularly within ophthalmology. It provides high-resolution, cross-sectional images of internal tissue structures non-invasively. Understanding the fundamental optical coherence tomography theory is essential for clinicians who rely on this powerful tool daily. This article delves into the core principles of OCT, explains how it achieves its remarkable micrometer-scale resolution, compares the different generations of OCT technology, and explores its primary applications. We aim to provide a clear, expert perspective for fellow professionals, ensuring you grasp the ‘why’ and ‘how’ behind the images you interpret.
The Fundamental Principles of OCT: How Light Creates Images
At its heart, Optical Coherence Tomography is an imaging modality built upon the principles of light interference. It operates somewhat analogously to ultrasound B-mode imaging, measuring the echo time delay and intensity of backscattered signals. However, OCT utilizes light waves instead of sound waves.
This fundamental difference allows OCT to achieve significantly higher resolution, typically ranging from 1 to 15 micrometers (μm). This is one to two orders of magnitude finer than conventional ultrasound, enabling visualization of tissue microstructures with exceptional detail.
The Core Concept: Low-Coherence Interferometry (LCI)
The foundational physics enabling OCT is low-coherence interferometry (LCI). This technique employs a light source characterized by low temporal coherence, meaning its waves maintain a consistent phase relationship over only a very short distance. This distance is known as the coherence length.
We use broadband light sources – those emitting a wide range of wavelengths – because they inherently possess short coherence lengths, often just a few micrometers. This property is absolutely critical for achieving fine depth resolution within scattering media like biological tissue.
The Michelson Interferometer Setup
A typical OCT system is based on a Michelson interferometer configuration. Here’s how it works:
- A low-coherence light source emits broadband light.
- A beam splitter divides this light into two distinct paths: the sample arm and the reference arm.
- The sample arm directs light towards the tissue being examined (e.g., the retina).
- The reference arm directs light towards a mirror positioned at a known, adjustable distance.
- Light entering the sample tissue penetrates to various depths, reflecting off interfaces between structures with different optical properties (refractive indices).
- Light from the reference arm simply reflects off the reference mirror.
- The reflected light beams from both arms are recombined by the beam splitter.
- This recombined light is directed towards a detector.
This setup forms the basis for comparing the path lengths traveled by light in the two arms.
Interference and the Coherence Gate
The magic of LCI happens when the reflected beams recombine. Interference – the superposition of waves resulting in a new wave pattern – occurs only when the optical path lengths of the sample beam and the reference beam are matched to within the coherence length of the light source.
Think of the coherence length as defining a narrow “coherence gate” in depth. Only light scattered or reflected from structures within this gate inside the sample can interfere with the light from the reference arm. Light reflected from structures outside this gate does not produce a significant interference signal.
The axial (depth) resolution of the OCT system is directly determined by the round trip coherence length (lC) of the light source. Assuming a Gaussian spectrum, this can be calculated as:
lC = (2 ln 2 / π) × (λ̄² / Δλ)
Where λ̄ is the mean wavelength and Δλ is the spectral width (bandwidth) of the source.
Example: Consider a superluminescent diode (SLD) source with a mean wavelength (λ̄) of 820 nm and a spectral width (Δλ) of 20 nm. Plugging these values into the formula yields a coherence length (lC) of approximately 15 μm. This value directly corresponds to the achievable axial resolution of the OCT system using this specific light source.
This inverse relationship between spectral bandwidth (Δλ) and coherence length (lC) is crucial: broader bandwidth sources yield shorter coherence lengths and thus, finer axial resolution. This is why high-resolution OCT systems employ sources like SLDs or even femtosecond lasers.
Generating Scans: From A-scan to B-scan
To build an image, OCT performs scans in two dimensions:
Axial Scanning (A-scan)
An A-scan represents a single depth profile of reflectivity at one specific lateral point in the tissue. In traditional Time-Domain OCT (which we will discuss later), this was achieved by physically moving the reference mirror. Changing the mirror’s position altered the reference path length, effectively moving the coherence gate through different depths within the sample. The intensity of the interference signal measured at each mirror position corresponds to the reflectivity of the tissue structure at that specific depth.
Lateral Scanning (B-scan)
To create a two-dimensional, cross-sectional image (a B-scan), the system acquires multiple A-scans sequentially across a line on the sample surface. This is done by laterally scanning the probe beam across the tissue (or sometimes by moving the sample itself, though less common in clinical settings). These adjacent A-scans are then compiled to form the familiar grayscale or false-color cross-sectional OCT image, revealing the tissue’s internal architecture.
It is important to note that the lateral resolution (resolution across the image plane) is determined by different factors than axial resolution. Lateral resolution depends primarily on the spot size of the focused light beam on the sample, governed by the optics of the system.
Achieving Micrometer-Scale Resolution: The OCT Advantage
The ability of OCT to resolve tissue structures at the micrometer level, non-invasively, is what makes it such a revolutionary diagnostic tool. This capability stems directly from the principles of low-coherence interferometry and the specific properties of the light used.
Why OCT Resolution is So High
The exceptional axial resolution is fundamentally tied to the use of light with a short coherence length, typically in the near-infrared spectrum. As explained, interference only occurs when the optical path lengths of the reference and sample arms match within this very short coherence length.
This precise depth discrimination, enabled by the coherence gate, allows OCT to effectively reject scattered light originating from outside the focal plane or depth of interest. This is a key advantage over techniques like conventional microscopy, where out-of-focus light can blur the image.
The Crucial Role of Broadband Light Sources
We cannot overstate the importance of the light source in determining OCT resolution. The governing principle is simple: the broader the range of wavelengths (bandwidth, Δλ) emitted by the source, the shorter its coherence length (lC).
A shorter coherence length translates directly to a narrower coherence gate, allowing the system to distinguish between reflecting structures that are very close together along the depth axis. This is how we achieve high axial resolution.
Common broadband sources used in OCT include Superluminescent Diodes (SLDs), femtosecond lasers, and other specialized broadband emitters. These sources enable modern OCT systems to routinely achieve axial resolutions in the range of 5-10 μm, sometimes even better.
This level of detail allows for what many call an “optical biopsy”—visualizing tissue microstructure in vivo with a resolution approaching that of traditional histology, but without the need for tissue excision.
Advantages Over Other Imaging Techniques
OCT offers several compelling advantages compared to other medical imaging modalities:
- Non-Contact and Non-Invasive: OCT requires no direct contact with the tissue and uses no ionizing radiation or contrast agents, making it exceptionally safe and suitable for delicate structures like the eye.
- Superior Axial Resolution: Compared to clinical ultrasound, OCT resolution is 10-100 times better. While confocal microscopy offers excellent lateral resolution, OCT typically provides significantly better axial (depth) sectioning capability within scattering tissues.
- Label-Free Imaging: OCT visualizes inherent tissue structure based on differences in optical properties (scattering, reflection), eliminating the need for potentially disruptive exogenous dyes or markers.
- Real-Time Imaging: Modern OCT systems acquire and display images very rapidly, enabling real-time visualization during examination or even procedures.
These advantages make OCT an invaluable tool, especially when paired with reliable instrumentation. Exploring options for high-quality used optical equipment can provide access to this technology efficiently.
Evolution of OCT Technology: TD-OCT, SD-OCT, and SS-OCT
Since its inception, OCT technology has undergone significant evolution, leading to faster imaging speeds, improved resolution, and enhanced sensitivity. We generally categorize these advancements into three main generations: Time-Domain OCT, Spectral-Domain OCT, and Swept-Source OCT.
Time-Domain OCT (TD-OCT): The Pioneer
Time-Domain OCT was the first generation of this technology to be commercialized. Its defining characteristic is the method used for depth scanning (A-scan acquisition).
In TD-OCT, the reference mirror is physically moved along the optical axis. For each position of the mirror, the detector measures the intensity of the interference signal. A strong signal indicates reflection from a sample structure whose optical path length matches the current reference path length. By systematically moving the mirror and recording the interference intensity at each step, a complete A-scan (depth profile) is built point-by-point.
While revolutionary at the time, TD-OCT suffers from limitations inherent in its mechanical scanning mechanism:
Speed: The physical movement restricts acquisition speed, typically to around 400 A-scans per second.
Resolution: Axial resolution was generally around 10 μm.
Sensitivity: The sequential point-by-point detection limited the overall signal-to-noise ratio compared to later methods.
Spectral-Domain OCT (SD-OCT): A Leap Forward
Spectral-Domain OCT (SD-OCT), also known as Fourier-Domain OCT (FD-OCT), represented a major breakthrough by eliminating the need for mechanical movement in the reference arm for depth scanning. This dramatically increased speed and sensitivity.
In SD-OCT, the reference mirror remains stationary. The interference pattern created by recombining light from the reference and sample arms contains information from all depths simultaneously. This combined beam is directed into a spectrometer, which uses a diffraction grating to spread the light out by wavelength onto a high-speed line-scan camera (detector array). Each wavelength component of the interference pattern carries information about a specific depth within the sample. The resulting spectral interferogram is then mathematically processed using a Fourier transform. This calculation rapidly reconstructs the full A-scan reflectivity profile.
SD-OCT offers significant advantages:
Speed: Acquisition rates jumped dramatically, typically ranging from 27,000 to 70,000 A-scans per second, sometimes even higher.
Resolution: Axial resolution improved to the 5-7 μm range.
Sensitivity: Detecting all depth information simultaneously provides a substantial sensitivity advantage (signal-to-noise ratio gain) over TD-OCT.
This leap in performance allowed for much denser scan patterns, faster examination times, reduced motion artifacts, and significantly improved image quality, making SD-OCT the workhorse in many optometry and ophthalmology practices. Enhancing your practice capabilities often involves incorporating advanced diagnostic tools, including various types of refraction and optometry equipment.
Swept-Source OCT (SS-OCT): Speed and Depth
Swept-Source OCT (SS-OCT) is another implementation of Fourier-Domain OCT, offering further enhancements, particularly in speed and imaging depth.
Instead of using a broadband light source and a spectrometer, SS-OCT employs a specialized laser source whose output wavelength is rapidly tuned (or “swept”) over a wide range. A single, high-speed photodetector measures the interference signal intensity as the laser wavelength sweeps. The intensity variations recorded over time during the sweep contain the spectral interference information. Similar to SD-OCT, a Fourier transform is applied to this time-encoded signal to reconstruct the A-scan depth profile.
Key characteristics and advantages of SS-OCT include:
Speed: SS-OCT systems achieve even higher imaging speeds, typically ranging from 100,000 to 400,000 A-scans per second, and sometimes exceeding 1,000,000 A-scans/sec in research systems.
Wavelength: Many SS-OCT systems operate at longer wavelengths, commonly around 1050 nm (compared to ~840 nm for typical SD-OCT). Longer wavelengths penetrate deeper into scattering tissues, offering better visualization of structures like the choroid and sclera in the eye.
Resolution: Axial resolution is comparable to or slightly better than SD-OCT, often around 5 μm.
Sensitivity Roll-off: SS-OCT generally exhibits less sensitivity roll-off with increasing imaging depth compared to spectrometer-based SD-OCT.
The ultra-high speeds allow for wide-field imaging and volumetric scanning quickly, while the deeper penetration is particularly valuable for posterior segment pathologies involving the choroid or optic nerve head structures.
Key Takeaway: Each OCT generation represents a significant technological advancement. While TD-OCT established the principle, SD-OCT brought practical high-speed, high-resolution imaging to clinics. SS-OCT further pushes the boundaries of speed and depth penetration. Most contemporary clinical systems utilize SD-OCT or SS-OCT technology, offering powerful diagnostic capabilities.
Key Applications of OCT in Medical Diagnostics
Optical Coherence Tomography’s ability to provide non-invasive, high-resolution cross-sectional images has made it an indispensable tool across various medical fields. Its impact has been particularly profound in ophthalmology, but its utility extends to cardiology, dermatology, and beyond.

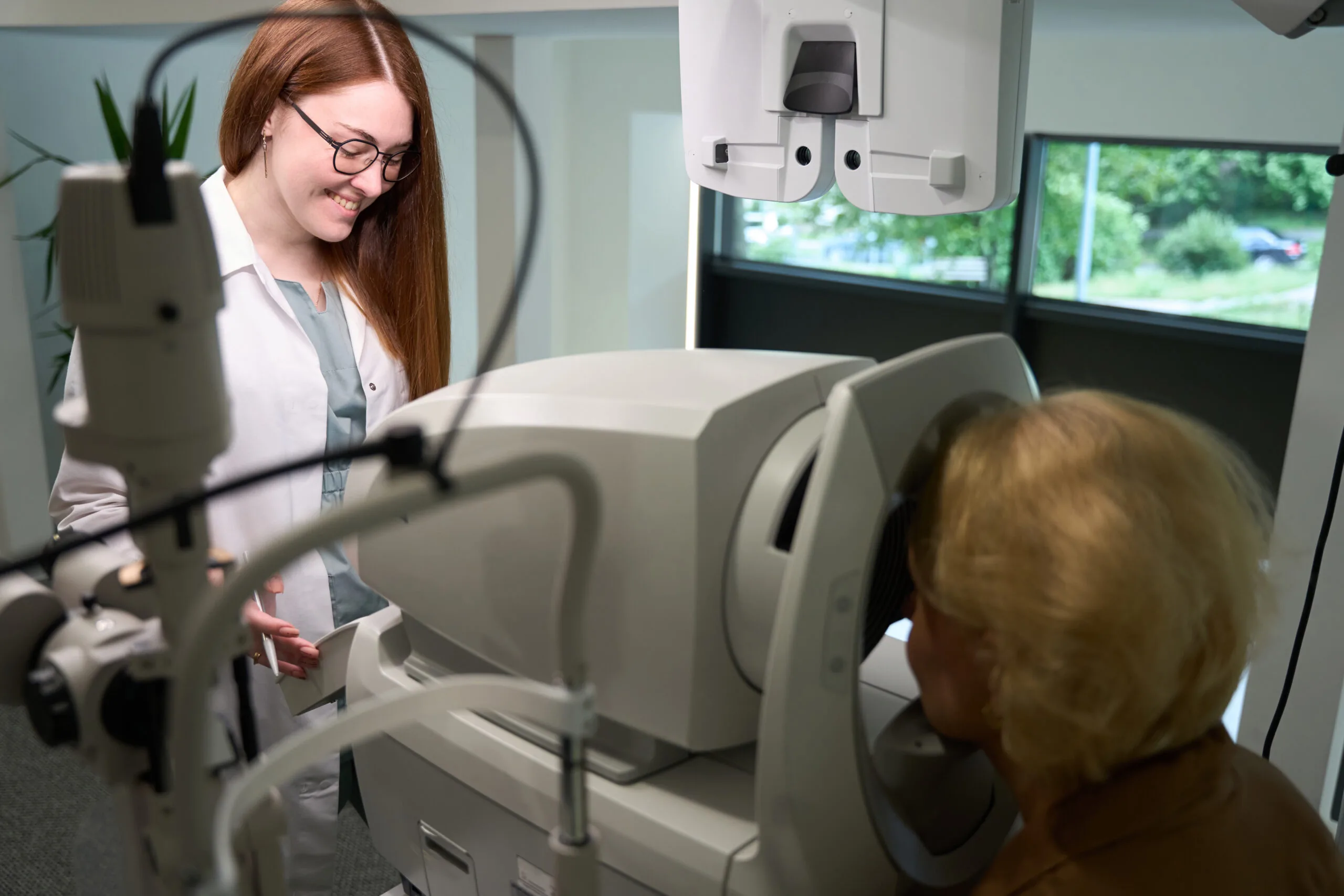

Dominance in Ophthalmology: A Window to the Eye
Ophthalmology is arguably the field where OCT has had the most transformative impact. The eye’s transparent structures and the critical need to visualize microscopic retinal layers make it perfectly suited for OCT imaging. We use it daily for diagnosing, monitoring, and managing a wide array of ocular conditions.
Diagnosing and Monitoring Retinal Diseases
OCT provides unparalleled detail of the retinal layers, choroid, and vitreoretinal interface.
- Glaucoma: Precise measurement of the Retinal Nerve Fiber Layer (RNFL) thickness and ganglion cell complex analysis are crucial for early detection and tracking progression. OCT provides objective, quantitative data essential for glaucoma management. Reliable diagnostic tools like slit lamps complement OCT findings.
- Macular Disorders: Conditions like Age-Related Macular Degeneration (AMD), diabetic macular edema, macular holes, and central serous chorioretinopathy (CSR) are readily visualized. OCT clearly shows fluid accumulation (intraretinal, subretinal), drusen characteristics, geographic atrophy, and choroidal neovascularization.
- Epiretinal Membranes (ERMs): OCT accurately delineates these membranes on the retinal surface and assesses their impact on macular contour (e.g., macular pucker).
- Vitreomacular Interface Disorders: Conditions like vitreomacular adhesion and traction are clearly depicted.
- Optic Disc Abnormalities: Evaluation of optic disc pits, drusen, and papilledema is enhanced by OCT’s cross-sectional view.
- Choroidal Conditions: Especially with deeper-penetrating SS-OCT, conditions like choroidal tumors or pachychoroid spectrum disorders can be better assessed.
Quantitative Analysis
A major strength of OCT is its ability to provide quantitative measurements. Most systems include software that automatically segments retinal layers and calculates thickness maps (e.g., RNFL thickness, macular thickness). These objective metrics are invaluable for establishing baselines, monitoring disease progression, and evaluating treatment response. Year-over-year comparisons become precise and reliable.
Dynamic Assessments
While primarily used for structural imaging, OCT’s speed allows for some dynamic assessment, such as observing changes immediately following procedures like laser photocoagulation, although this is less common in routine clinical practice.
Indications of Systemic Disease
OCT can reveal ocular manifestations of systemic diseases. For example, subtle changes in RNFL thickness might be an early indicator in multiple sclerosis, and characteristic retinal findings can point towards certain drug toxicities (e.g., hydroxychloroquine retinopathy). If you have questions about specific device capabilities, our FAQ page might provide some answers.
Cardiovascular Imaging: Inside the Arteries
While ophthalmology represents the largest application, OCT has also made significant inroads into interventional cardiology, primarily through Intravascular OCT (IV-OCT).
Using miniaturized probes delivered via catheters, IV-OCT provides extremely high-resolution images from inside coronary arteries.
Assessing Coronary Arteries
- Atherosclerosis: IV-OCT offers detailed visualization of plaque composition, allowing differentiation between fibrous, lipid-rich, and calcified plaques. Identifying thin-cap fibroatheromas (vulnerable plaques) is a key capability.
- Acute Events: It can clearly visualize plaque rupture, erosion, and thrombus formation, which are often the triggers for heart attacks.
Guiding Interventions
- Stent Deployment: IV-OCT provides precise assessment of stent strut apposition against the vessel wall, stent expansion, and detection of complications like edge dissections or tissue protrusion. This guides optimal stent implantation.
- Angioplasty: It helps evaluate the result of balloon angioplasty.
- Follow-up: IV-OCT is used to assess stent healing over time, including neointimal coverage and detection of late complications like in-stent restenosis or neoatherosclerosis.
Emerging Applications in Other Fields
OCT’s potential is being explored in numerous other medical specialties:
Dermatology
OCT offers non-invasive imaging of skin layers, aiding in the diagnosis of skin cancers like basal cell carcinoma (BCC) and squamous cell carcinoma (SCC) by visualizing architectural changes. It can also assess inflammatory conditions like psoriasis.
Oncology
Potential applications include guiding surgical excision by evaluating tumor margins in real-time (‘optical biopsy’) and potentially aiding in the early detection of cancerous changes in accessible tissues.
Gastroenterology
Endoscopic OCT probes allow imaging of the gastrointestinal lining, particularly for detecting dysplastic changes in Barrett’s esophagus or potentially aiding colorectal cancer screening.
For inquiries about specific applications or equipment, please feel free to use our contact page.
The Value Proposition: Why OCT is Indispensable
The widespread adoption and continued development of OCT technology stem from its unique combination of advantages, making it an invaluable asset in modern medical practice.
Non-Invasive Insight
OCT provides micro-level structural information comparable to histology but without the need for tissue excision. This “optical biopsy” capability allows for diagnosis and monitoring without the risks, delays, and discomfort associated with traditional biopsies. It preserves tissue integrity, which is paramount in delicate structures like the eye.
Real-Time Decision Making
The immediacy of OCT imaging allows clinicians to make informed decisions during the patient encounter. Results are available instantly, facilitating efficient diagnosis, treatment planning, and patient education. This contrasts sharply with modalities requiring sample processing or complex reconstructions.
Reducing Diagnostic Uncertainty
By providing clear, objective, and quantitative data, OCT reduces ambiguity in diagnosing and monitoring diseases. It can detect subtle changes often missed by clinical examination alone. Compared to the potential sampling errors of small physical biopsies, OCT can image larger areas, providing a more comprehensive view of the tissue landscape. This is particularly true when using reliable, well-maintained equipment, underlining the importance of quality sources and thorough refurbishment processes for pre-owned devices.
In summary, OCT’s blend of high resolution, non-invasiveness, speed, and quantitative capability solidifies its role as a critical diagnostic technology.
We have explored the fundamental optical coherence tomography theory, from its basis in low-coherence interferometry to the factors governing its micrometer resolution. We examined the evolution through TD-OCT, SD-OCT, and SS-OCT, highlighting the advancements in speed and capability. Finally, we reviewed its extensive applications, particularly its indispensable role in ophthalmology and growing importance in other fields. OCT truly allows us to see beneath the surface, non-invasively, providing insights crucial for patient care. We thank you for taking the time to read this detailed overview. Should your practice require high-quality diagnostic instrumentation, we invite you to explore our range of expertly refurbished optical equipment, meticulously restored to meet demanding clinical standards.
